Full digital cluster

baktasht · 09-05-2008, 10:29 AM

We will be releasing another gauge "kit" in few weeks to add to our awesomely popular digital boost gauge which replaces the stock boost gauge in the OEM cluster.

The new gauge "kit" will come with

* One dual display gauge to replace the OEM fuel level gauge:
- This will have two digital outputs on it. One for fuel level and one for water temperature

* One dual display gauge to replace the OEM water temperature gauge:
- This will have two digital outputs on it. We can configure these in any combination of the following: Wideband AFR, boost, oil temp, oil pressure, outside air temp, voltage, EGT

For the first group buy on these, we are probably going to offer the following configuration:

* Left side: Water temp on top, fuel level on bottom
* Right side: Oil pressure on top, oil temp on bottom

These will come with all necessary sending units and sensors, detailed installation instructions and also our usual lifetime warranty.

Please let me know your thoughts, concerns, and any questions.

PETC · 09-05-2008, 01:32 PM

You guys keep coming out with cool things. Wish I had disposable income.

conor · 09-05-2008, 01:59 PM

If you'd stop √(176400)'ing, you'd probably have a few extra bucks here and there, eh? eh? KnowwhatImeaneh?

baktasht · 09-05-2008, 02:14 PM

Quote:

Originally Posted by conor

If you'd stop √(176400)'ing, you'd probably have a few extra bucks here and there, eh? eh? KnowwhatImeaneh?

what does the equation stand for? lol

Servin · 09-05-2008, 03:15 PM

Its easy simple math the square root of 176400 = 420 duh every one should know this. He is probably too busy creating the natural (x(t+1)=x(t)*b where b>1) of his log. Math funnies rock!

figure that one out!

jazzcornet · 09-05-2008, 04:09 PM

that's priceless ^^^^ i never saw that one before.my favorite was always trying to inhale dihydrogen monoxide.

servin, imagine partial d/dt of the original expression and integrated dx

figure that one at.

as for the guages. count me in for the green ones!!!

Servin · 09-05-2008, 04:25 PM

That first one gets a lot of people! But it too is timeless.

That too is awesome!

Man i knew all that math im taking for engineering was going to pay off! Sadly though only enough to make nerdy jokes...

jazzcornet · 09-05-2008, 04:56 PM

I=n3rd!!

B.S. Nuclear Engineering m. Theoretical mathematics @ mit. Ya dig?

No more thread jacking (sorry tash). Shoot me a pm if you want to talk more about it

Servin · 09-05-2008, 05:10 PM

Wow man! Im just going for a BS in Mechnical engineering and its tough. Im not terrible with math but neither does it come to me. I admire that level work you put in to get those degrees esp. at MIT! /thread jack

Could we get pics of the type of guages you are going to use? Also do you have any idea what the fuel guage will look like/work? I hate the one in 08 Lancer it has a vertical bar that moves down in notches. Not really a improvement over the dial type. But the newer hond civics have a horizontal bar with multiple blocks that is a bit more accurate but still dont like that one.

Dance_Business · 09-06-2008, 12:12 AM

Quote:

Originally Posted by baktasht

We will be releasing another gauge "kit" in few weeks to add to our awesomely popular digital boost gauge which replaces the stock boost gauge in the OEM cluster.

The new gauge "kit" will come with

* One dual display gauge to replace the OEM fuel level gauge:
- This will have two digital outputs on it. One for fuel level and one for water temperature

* One dual display gauge to replace the OEM water temperature gauge:
- This will have two digital outputs on it. We can configure these in any combination of the following: Wideband AFR, boost, oil temp, oil pressure, outside air temp, voltage, EGT

For the first group buy on these, we are probably going to offer the following configuration:

* Left side: Water temp on top, fuel level on bottom
* Right side: Oil pressure on top, oil temp on bottom

These will come with all necessary sending units and sensors, detailed installation instructions and also our usual lifetime warranty.

Please let me know your thoughts, concerns, and any questions.

Meanwhile, back on topic....
You know I will want this. I need a guesstimate of the $$$. Will there be color choices?

wetherbymr2 · 09-06-2008, 01:15 AM

pic of sample maybe?

PETC · 09-06-2008, 06:12 AM

Quote:

Originally Posted by conor

If you'd stop √(176400)'ing, you'd probably have a few extra bucks here and there, eh? eh? KnowwhatImeaneh?

Yeah, because the occasional $20 I throw down on weed is TOTALLY bankrupting me and I obviously have debilitating addiction. Dude, if you don't smoke pot or even like it, cool, that's your business, but please stay the **** out of mine. Thank you very much.

The reason I have no money is college, but you know... you can go on talking down to me if you want.

PHOENIX · 09-06-2008, 06:17 AM

yeah, a sample pic would be awesome, even a photoshop if you don't have one.

baktasht · 09-06-2008, 07:27 AM

I don't have any sample pics yet as the prototype is currently being worked on. All of the engineering work, firmware work, and CAD work is completed and we're working on getting the first physical prototypes finished right now. I'll see if I can dig up some sketches for now.

lsgheero · 09-06-2008, 08:50 AM

sniff snifff......us poor mk1 people.......

fubar the popularity of the mk2~!~~~~! :P

mr2magic · 09-06-2008, 12:02 PM

still trying to figure the damn math **** out. Am I stupid or something??

metheores · 09-06-2008, 12:45 PM

Oh wow, that's sick, are they gonna be digital as in "number" digital? or is it gonna be close to what the Honda's digital gauge looks like?

baktasht · 09-06-2008, 01:18 PM

Quote:

Originally Posted by metheores

Oh wow, that's sick, are they gonna be digital as in "number" digital? or is it gonna be close to what the Honda's digital gauge looks like?

Digital as in numbers and programming and signaling. Similar to our current ones:

Gauges : EMSPowered, High Quality, Great Service, Low Prices

and

EMSPowered Custom Boost Gauge

metheores · 09-06-2008, 01:42 PM

i mean like is the fuel gonna be shown in numbers for example 13/14, 98% (never seen that) or is it gonna look like the new honda civic ones? the ones with the little rectangles. or is it gonna be like the stock look but only digital?
I do valet for a job so sometimes i see pretty tricked out stuff on some new-er cars, especially European ones

baktasht · 09-24-2008, 02:44 AM

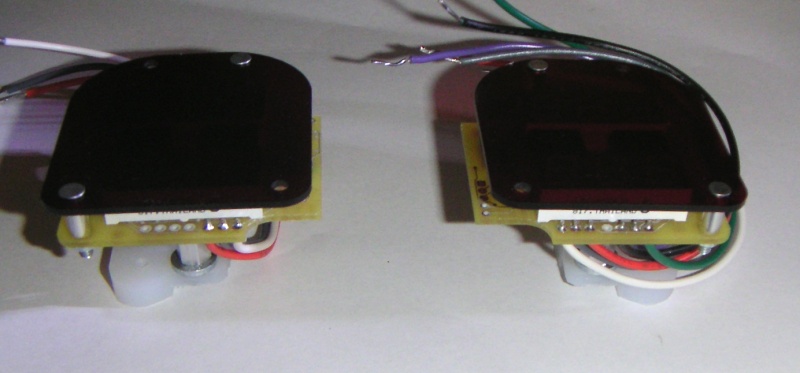

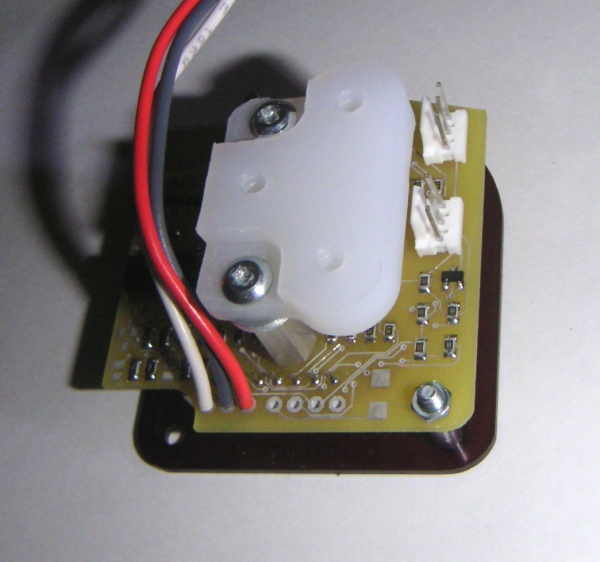

Here are pics of the first prototype. The pre-order group buy will be posted within 1 - 2 days.
