How I hooked my iPod up with a Toyota radio, and kept OEM look

mthreat · 01-25-2008, 01:52 AM

I just finished up this project tonight, and wanted to share my work. My goal was to:

1) inexpensively hook my iPod up to my '95 MR2 stereo directly (no FM transmitters), while

2) retaining the OEM stereo look (no aftermarket stereo).

As a bonus, I can use my stereo's next/previous CD buttons to control the iPod song. Here's how I did it.

The main piece of work was finding a Toyota OEM stereo that would plug directly in to the 15-pin premium sound of my MR2, and also had a CD changer input. My stock MR2 stereo plugged directly into the 15-pin harness, of course, but they didn't start adding CD-changer inputs until around 1998. So I searched on eBay and found an OEM stereo from some other Toyota that had the 15-pin premium connector, and also had a CD changer input. I bought it for $160. Here's a side photo of the stereo I found:

I bought it from a guy named John Nguyen ("factoryradios" on eBay), who was very helpful in finding a radio that fit my requirements. Here's a link to his eBay page - eBay My World - factoryradios - but there are others selling these radios as well, and local stereo shops are likely to have them too.

Keep in mind, this 15-pin connector was used on 94-95 MR2s with premium sound. For older models, I don't know what kind of connector they used, feel free to post your findings in this thread.

The other part you'll need to connect your iPod to the stereo is a USA-Spec PA12-TOY (or find it on google). This runs about $150, and it plugs into the CD-changer input on the back of the car stereo, and emulates a CD changer. It's pretty nifty, and the sound is great, since it's a direct connection.

Once I had the parts, I used this helpful howto to remove the dash and stereo (remember to eject your CD first!):
MKII Toyota MR2 Audio How-To

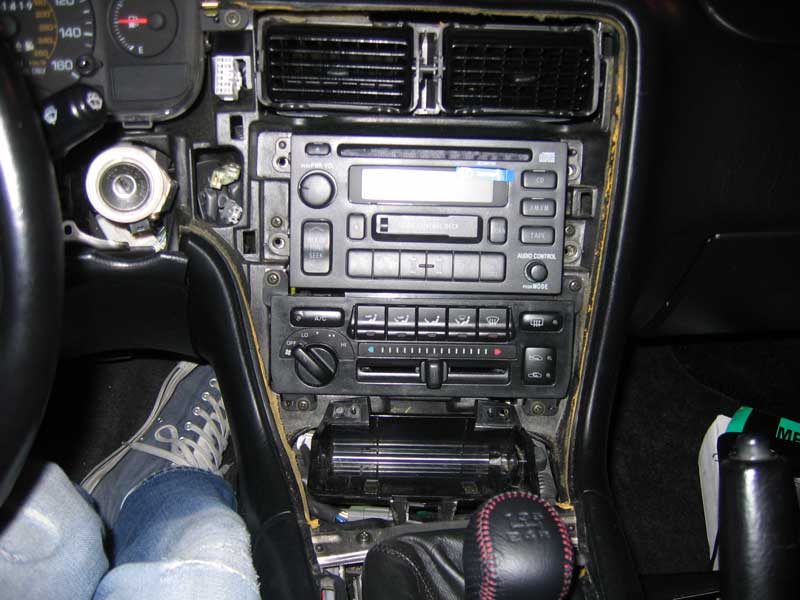

Then I tested the new stereo to make sure everything worked. The two antenna wires plugged right in to the new stereo, as did the 15-pin connector, and USA-Spec iPod device plug. Here's a photo of the new stereo halfway installed, with the console dash piece off:

Once I was sure it all worked, I moved the mounting brackets from the old stereo to the new one, and put the new stereo in place. I had to put the USA-Spec device somewhere, so I velcroed it kind of behind the stereo, to the right. There's plenty of room for it down there. Alternatively, it comes with 4 screws that you can use to mount it.

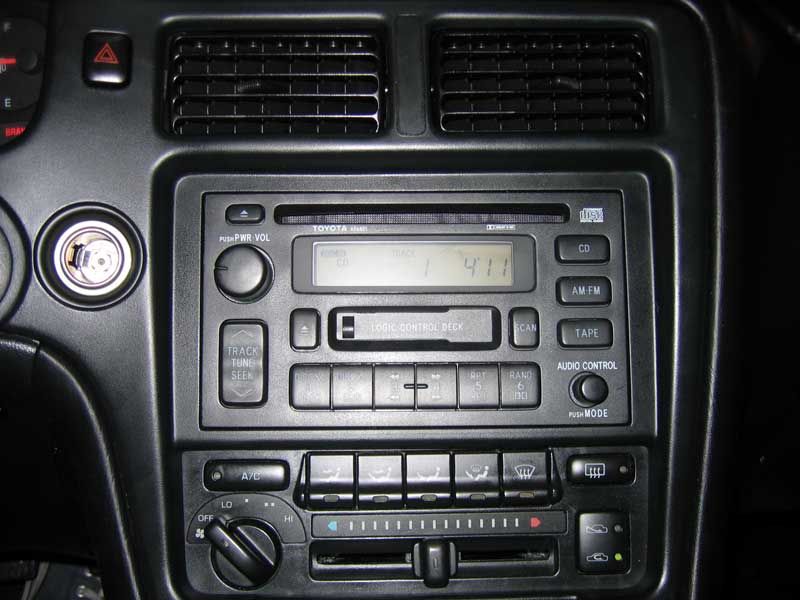

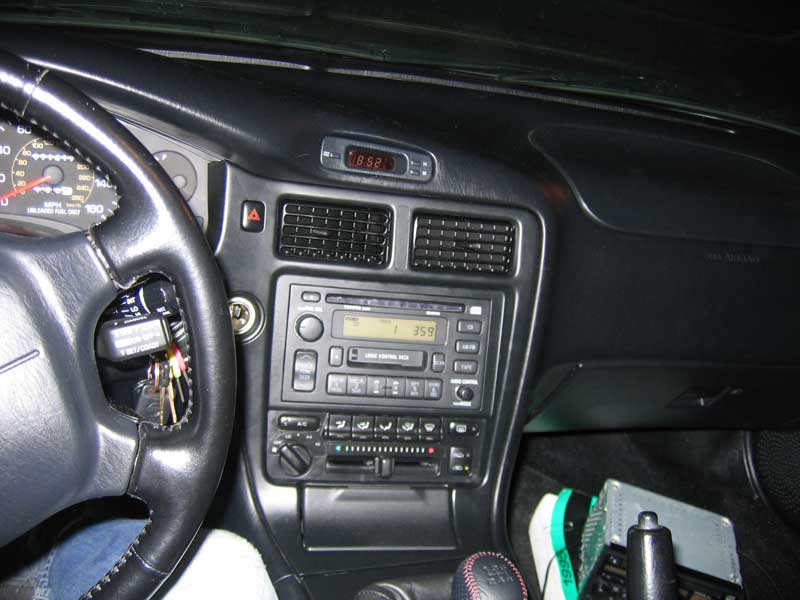

It works and sounds excellent. Now I just need to figure out an iPhone mount (it works with either an iPod or iPhone). Here's how it looks finally installed - note the OEM look:

PETC · 01-25-2008, 02:51 AM

That's really cool man. Good work. If I wasn't really picky about sound system stuff I might do that. Also my boost controller and TT are in the second din spot, so I can't do it anyways.

But nice work none the less.

Bak@EMSPowered · 01-25-2008, 03:28 AM

great work! Someone really needs to make a nice iPod mount for the mr2.

Sylvan · 01-25-2008, 04:59 AM

Quote:

Originally Posted by baktasht

great work! Someone really needs to make a nice iPod mount for the mr2.

Yea, someone *cough*Baktash*cough* should really make one. Awesome work with that stereo though. Looks 5 times better than my aftermarket unit.

mopwer · 01-25-2008, 06:42 AM

Very cool. If it was a little cheaper for the converter, I'd do it too. I already have a JVC HD unit with the IPOD adapter and it was about $250 total. I ran the IPOD wire to the upper compartment on the CD console. That's where my old IPOD sits.

JFYI, my 93 has the same 15 pin plug.

Greg

Bak@EMSPowered · 01-25-2008, 08:03 AM

Quote:

Originally Posted by Sylvan

Yea, someone *cough*Baktash*cough* should really make one. Awesome work with that stereo though. Looks 5 times better than my aftermarket unit.

I wish i had time right now. Maybe later this year

turbomr2 · 01-25-2008, 08:38 AM

great work. I just used an RCA hook up on my after market. It works great, but I've got a wire coming out of my dash.

canadam · 01-25-2008, 10:07 AM

Awesome work! I love when a writeup is innovative

Good idea Baktash

mthreat · 01-25-2008, 07:33 PM

Quote:

Originally Posted by baktasht

great work! Someone really needs to make a nice iPod mount for the mr2.

Proclip might work.. their site says they don't currently have one made for the 95 MR2, but maybe one from another car will fit: ProClip Mounting System *-*Choose Your Country

Anyone here used Proclip on their MkII MR2?

mopwer · 01-25-2008, 08:35 PM

Do you happen to have a pic of the back plugs? Not sure what the plug for the cd changer looks like on these. Thanks.

Greg

canadam · 01-25-2008, 08:42 PM

Too bad you had to settle for a Delco deck, was there any Matsushita (Panasonic) or Fujitsu Ten (maker of Eclipse) ones that would have worked?

mthreat · 01-26-2008, 01:39 AM

Quote:

Originally Posted by mopwer

Do you happen to have a pic of the back plugs? Not sure what the plug for the cd changer looks like on these. Thanks.

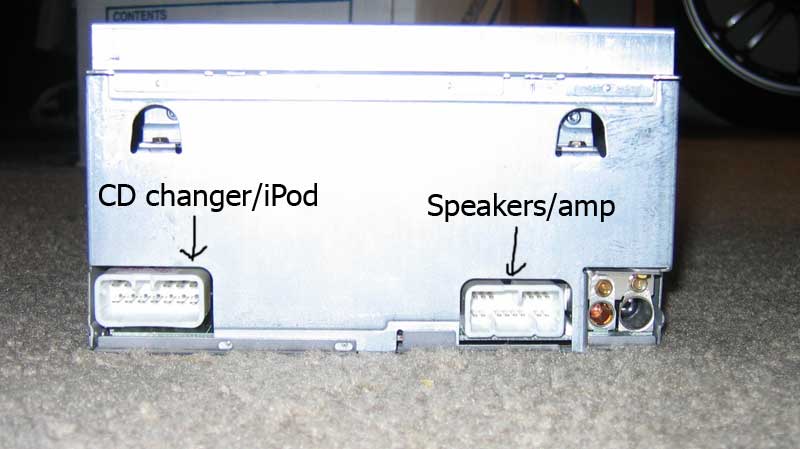

Here's a pic of the back, the CD changer plug is on the left, and the 15-pin connector on the right:

Quote:

Originally Posted by canadam

Too bad you had to settle for a Delco deck, was there any Matsushita (Panasonic) or Fujitsu Ten (maker of Eclipse) ones that would have worked?

I didn't look for other brands, but if they will hook up to the toyota premium sound amp, and have a CD changer input, then it should work. I also think there are other Delco decks, including one with a built-in CD changer (in addition to the CD changer input for the iPod), but that one costs more.

mopwer · 02-05-2008, 09:23 PM

I just did the same thing you are describing here, but I can't figure out how to switch the head unit to cd changer mode. How do you do it?? Thanks.

Greg

mthreat · 02-05-2008, 10:52 PM

Quote:

Originally Posted by mopwer

I just did the same thing you are describing here, but I can't figure out how to switch the head unit to cd changer mode. How do you do it?? Thanks.

Greg

Just push the "CD" button twice - it switches it between CD changer and internal CD player.

mopwer · 02-05-2008, 11:04 PM

Quote:

Originally Posted by mthreat

Just push the "CD" button twice - it switches it between CD changer and internal CD player.

Twice quick?

Greg

mthreat · 02-05-2008, 11:32 PM

Quote:

Originally Posted by mopwer

Twice quick?

Greg

nah, just normally.. each time you push it, if there's a CD in the internal player, and an external CD changer (or iPod), it will switch from one to the other.

mopwer · 02-06-2008, 07:09 AM

Quote:

Originally Posted by mthreat

nah, just normally.. each time you push it, if there's a CD in the internal player, and an external CD changer (or iPod), it will switch from one to the other.

That's what I thought. Mine isn't working. Think I got a bupkis radio. I'm also trying to use the Grom ipod adaptor. Didn't seem to work on this, but installed it in my wifes IS300 and it works fine.

Greg

mthreat · 02-10-2008, 02:34 PM

If anyone wants to do the same install I described above, here is another auction for the same stereo that I used, and also from the same seller:

eBay Motors: Toyota Avalon Camry 4 Runner Sienna CD Cassette Radio (item 190197334509 end time Feb-18-08 08:09:30 PST)

The auction ends Feb 18 in the morning.
